PadTV PT115

Mygica

PadTV PT115

Convierte tu Android en un receptor de televisión digital portátil de alta calidad.

El PadTV de MyGica es un mini receptor de televisión TDT (DVB-T) para dispositivos móviles que se conecta a tu smartphone/tablet Android.

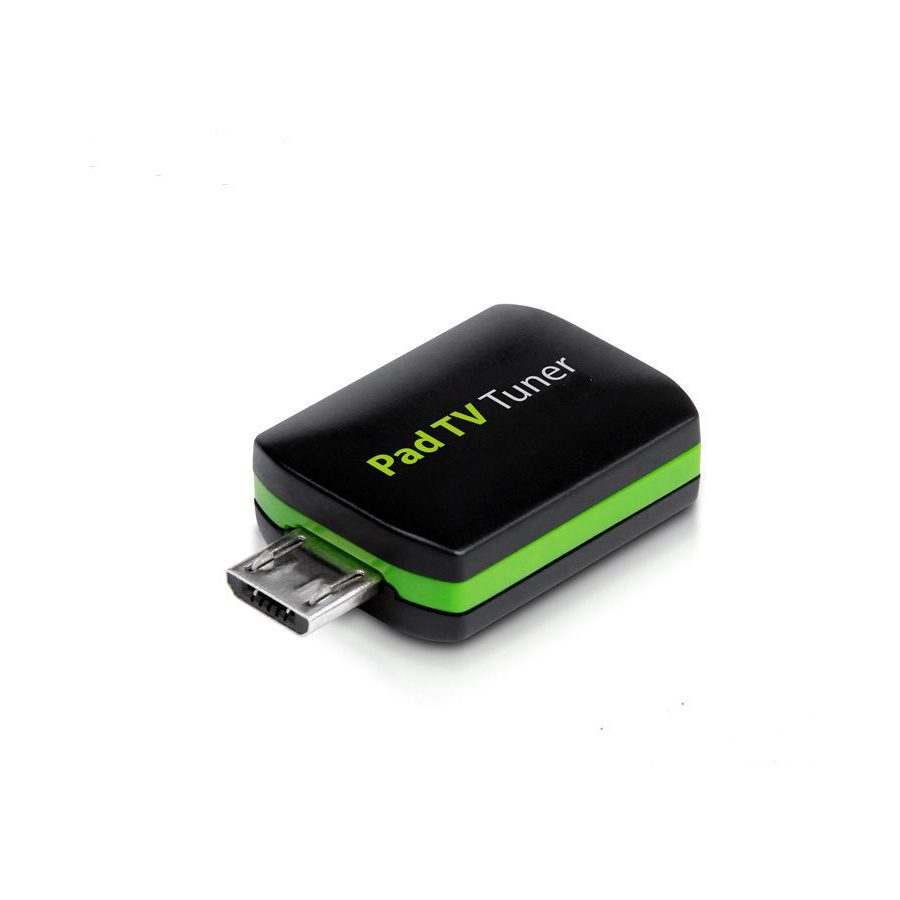

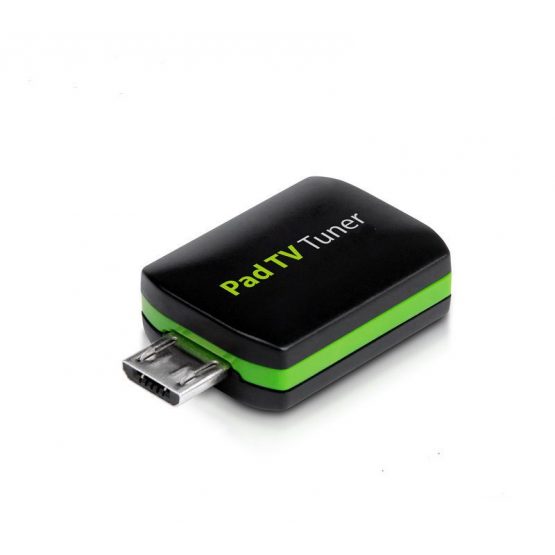

MyGica PT115 DVB-T mini TV Stick is a small size digital USB TV Stick with high sensitivity, designed for watching DVB-T on Android Phone/Pad with USB OTG. It turns your Android Pad into a high quality portable digital TV receiver. The sleek and compact design makes your trip easy and fun. You may enjoy digital TV live stream entertainment whenever you like and wherever you go!

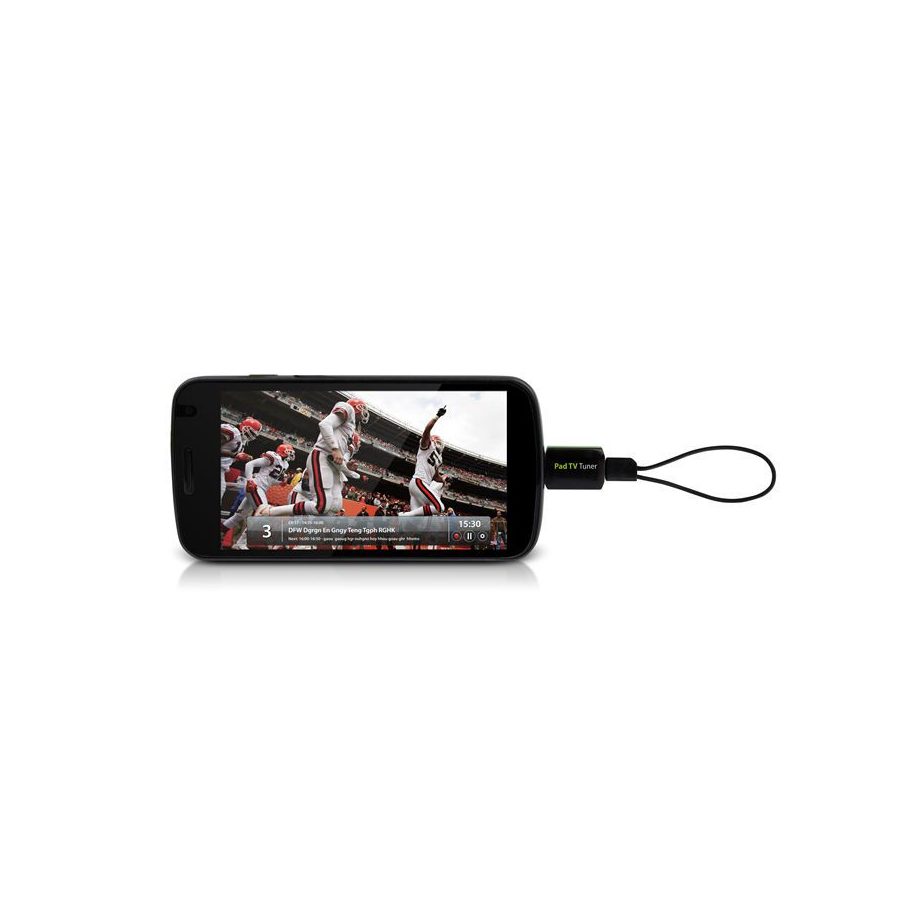

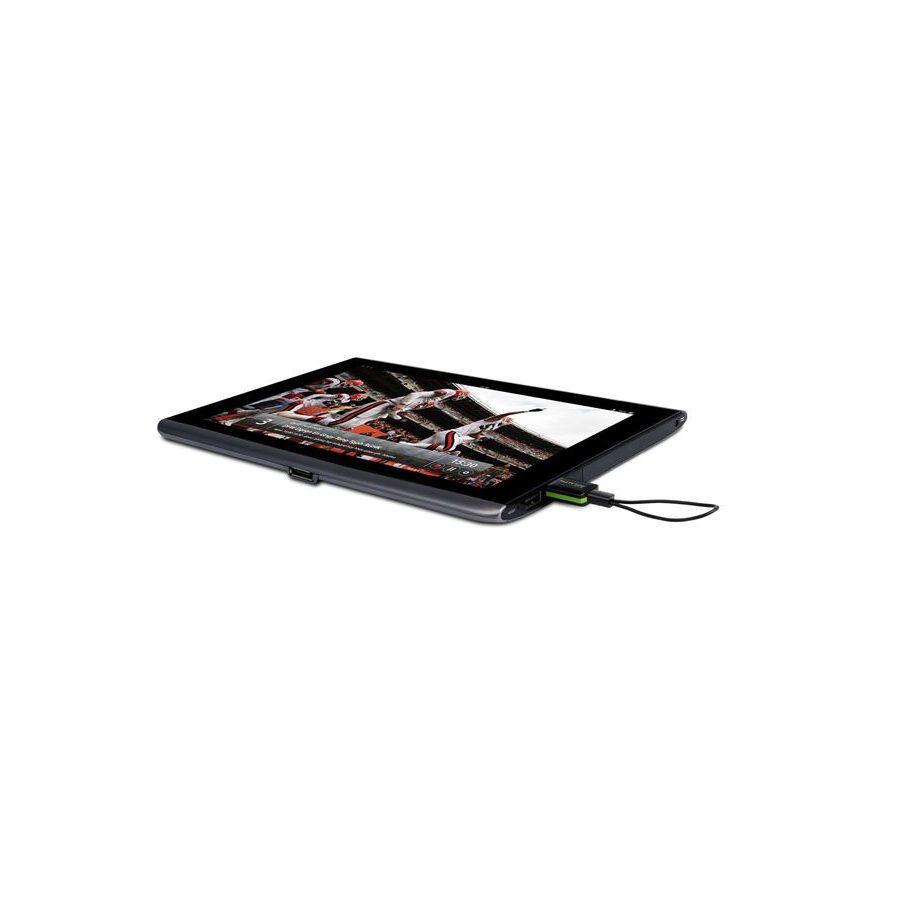

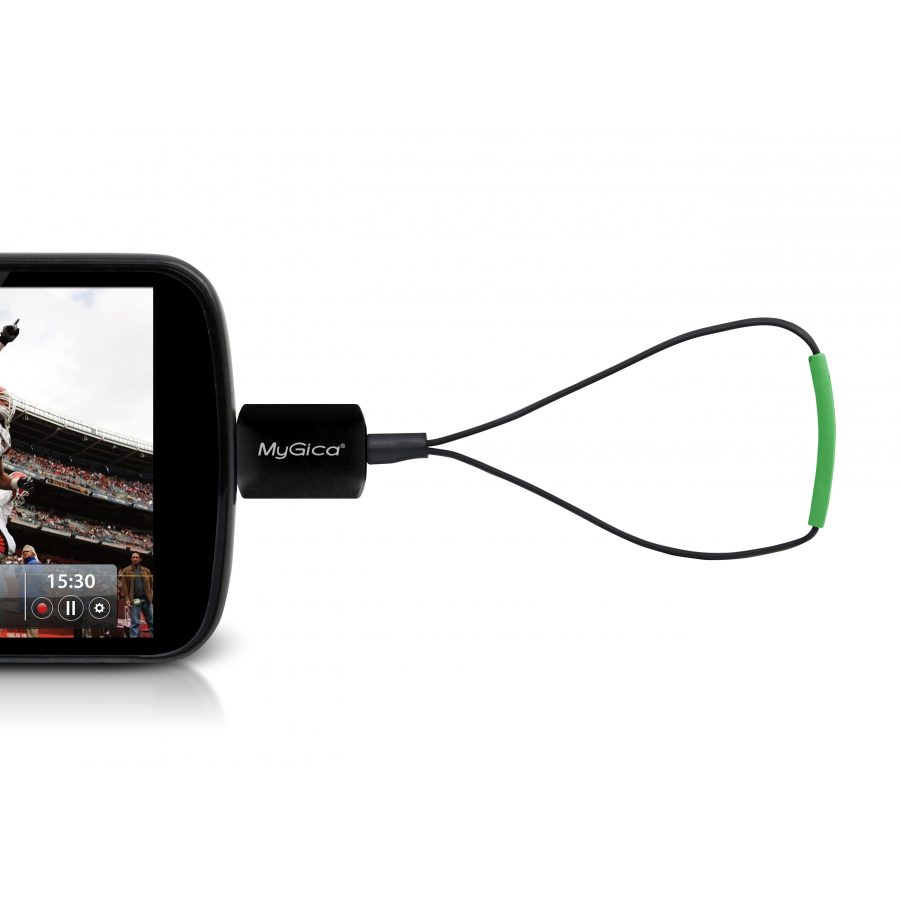

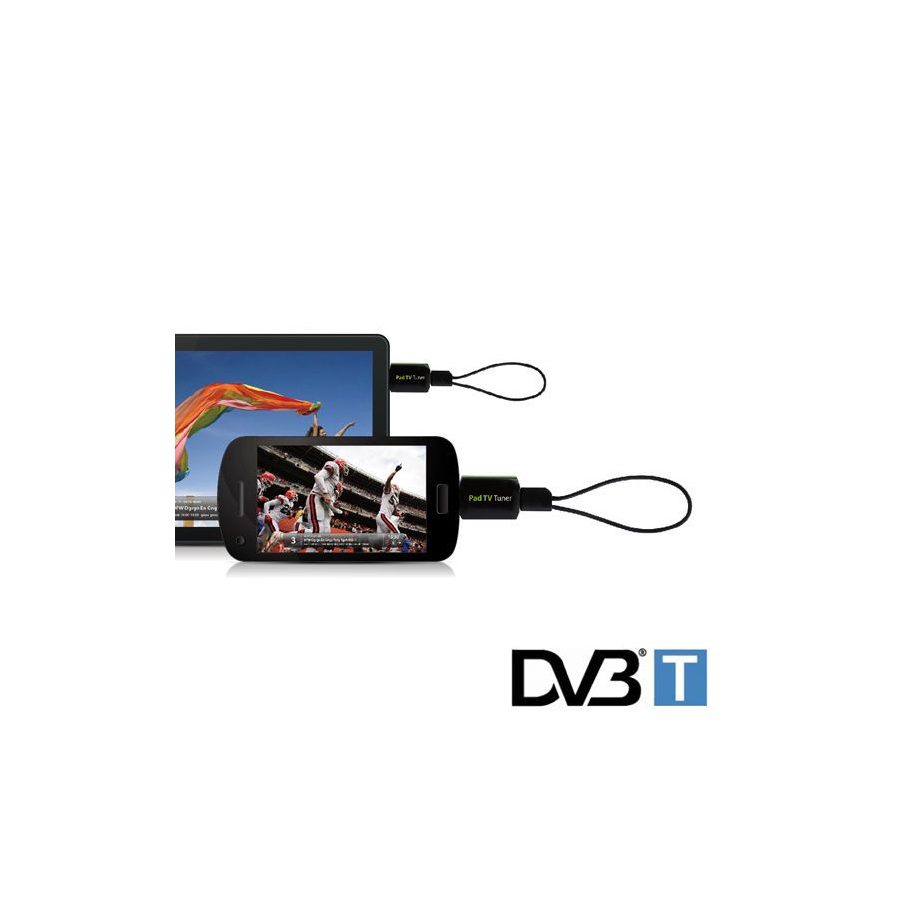

Watching live TV on your Android tablet/Pad is no longer a pipe dream. Thanks to advances made by Geniatech, you can tune in on demand and Live TV programming on your Android Phone/Pad.

Software (PadTV)

https://play.google.com/store/apps/details?id=com.padtv
https://play.google.com/store/apps/details?id=com.Pad.tvapp

Features

  • Advanced TV Application,Watch DVB-T TV on Android Phone/Pad with USB OTG
  • Rewind and Fast Forward live TV shows with Time shifting recording
  • Electronic Program Guide (EPG) and Supporting.
  • Automatic TV channels searching
  • Create favorite channels for convenient watching
  • High sensitivity under low signal broad casting area
  • Geniatech HiDTV for Android application software

System-Requirements

  • Android 4.1 or above
  • SDTV:
    • Cortex A8 800MHz CPU or above (Amlogic 8726-m3 recommended)
    • 512MB RAM or above
    • 20MB flash memory
    • Display resolution 800*480 at least
  • HDTV:
    • Cortex A8 1.2G or above for HDTV (Amlogic 8726-Mx A9 1.5Ghz dual core recommended)
    • 512MB RAM or above for HDTV
    • Hardware H.264 decoding acceleration
    • Display resolution 1024*600 at least
  • USB 2.0 Compatible
  • Digital Terrestrial Broadcasting Signal
  • UHF/VHF Antenna for DVB-T Terrestrial TV

Remark: Pad tv tuner can't be compatible in all A23 tablets now.The above is just for reference an requires an Android device with a 1 GHz or faster dual-core CPU, USB host mode functionality and Playback of MPEG-4/H.264 video requires a processor with NEON support (e.g. Tegra3).

High definition channels, encrypted programs and/or DVB-T2 broadcasts are not supported.

Package-Contents

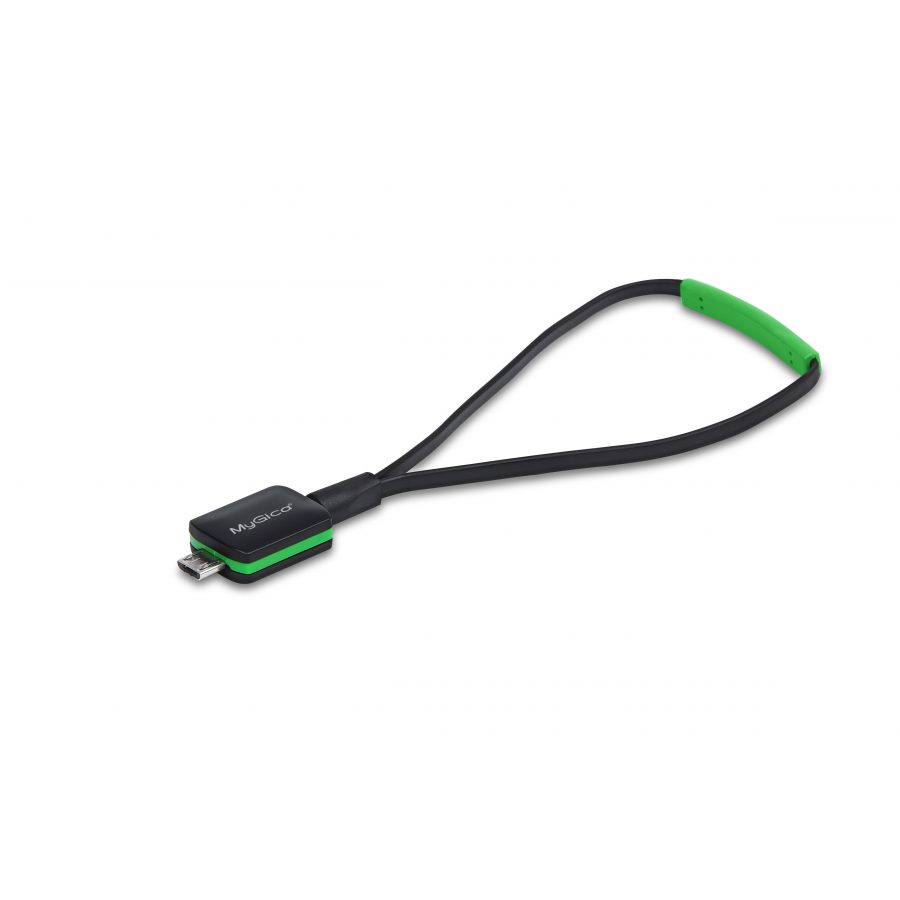

  • PT115 DVB-T mini TV Stick
  • Antenna
  • Quick installation guide

Specifications

ModelPT115

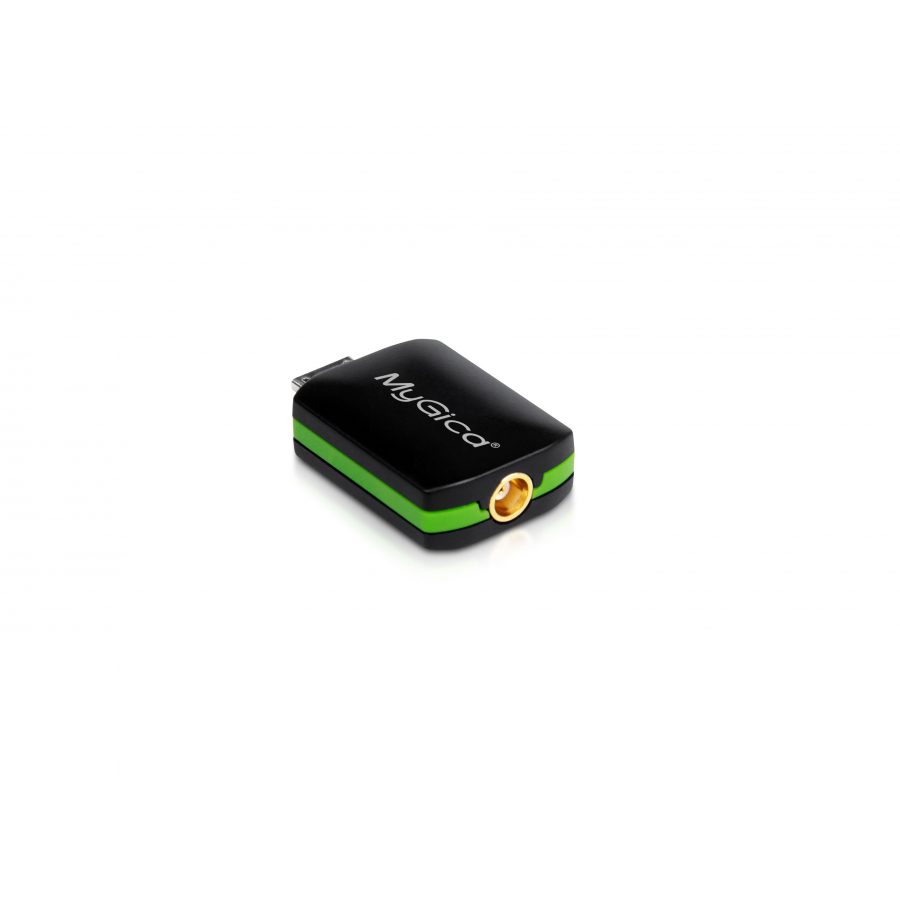

Input Signal75 Ohm Digital TV Antenna Input
Receive FrequencyFully DVB-T Compliant
FFT Size2K to 8K
Punctured Codes1/2, 2/3, 3/4 4/5, 5/6 and 7/8
Bandwidth6/7/8 MHz
De-Multiplexing
Max Section filtering32PIDS
EngineSoftware
Stream capturePES & TS
Recording Format
Video FormatMPEG2 MP & ML/H.264
Audio FormatMPEG2 Audio Layer I & II / AAC
