You're just one step to turn your TV into Smart TV
View larger
Firmware / Operation System
Android 6.0 quad core Android TV box
Youtube TV: With Youtube TV version support which give you 1080P and 4K2K Ultra HD viewing experience on big TV Screen
Kodi
Kodi, formally known as XBMC, is a media player platform that allows users to play and view most videos, music, such as podcasts from the Internet, home network and all common digital media files from local and network storage media. The ATV 495X comes pre-installed customized and optimized Kodi, with hardware decoding up to 4K2K Ultra HD support.
WiFi A + Bluethoot
3x Faster Wifi speed than Wireless-N Wi-Fi 150% wide/Ultra-wide coverage for large homes and multi-floor location with Less Interference.
4K2K/ULTRA HD @60fps
4K2K Ultra HD video playback / real time decoding, with HDMI 2.0 frame rate can go up to 60fps. Enjoy the incredible picture crispness and dramatic detail 4K2K Ultra HD and 1080p resolution.
H.265 hardware decoding, saving 50% bandwidth
H.265/HEVC is a successor to H.264/AVC. Compare to H.264, H.265 data compression ratio is double at the same level of video quality. It can alternatively be used to provide substantially improved video quality at the same bit rate.
10bit color decoding
10bit color decoding, support maximum 1.7 billion color depth, 60 times more than normal 8bit color decoding. Gives you more natural, more real picture color.
OTA Update
MyGica Andoid TV Platforms / Solution benefit from MyGica's worldwide secure online update service, to always provide the latest, safest and greatest Firmware and Application that are available.
Features
- Quad-core ARM® Cortex™-A53 up to 2GHz
- Penta-core ARM Mail GPU up to 750MHz
- Powered by Android 6.0 ,support frmware update
- H.265 HEVC Support
- VP9 Profle-2 upto 4K x 2K@60fps
- Support UHD 4K 60fps HW decoding
- 1G RAM, 8G EMMC
- HDMI2.0 Video output
- Support Motion mouse and Keyboard input
System Requirement
- TV with HDMI in.
- For WiFi, Router with preferrably N support.
Package Contents
- ATV495X
- HDMI cable
- User Manual
- Power Adapter
- Remote Control
Specification
| System | ||||

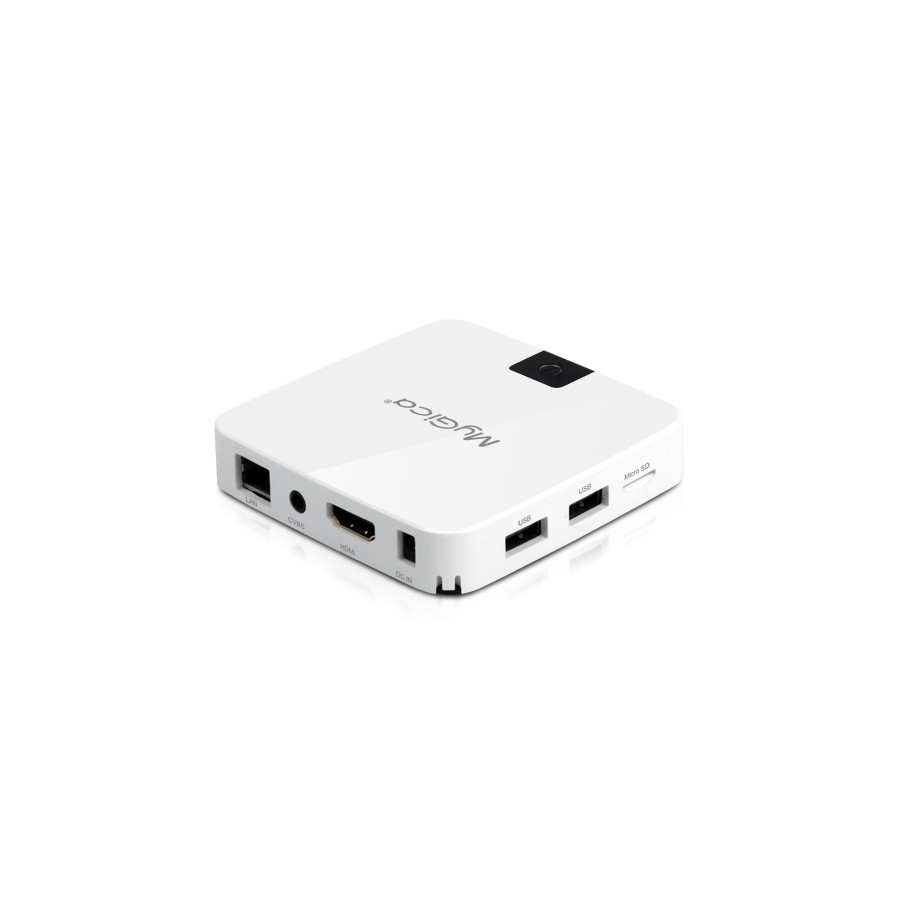

| Product | Mygica Android 6.0 TV box ATV495X | |||
| CPU | Quad Core 64bit ARM Cortex - A53 | |||
| Frequency | 2 GHz | |||
| RAM | DDR3-1GB | |||
| Storage | 8GB EMMC | |||
| OS | Android 6.0 | |||
| Main Function | ||||
| UI | Mygica Android 6.0 system UI style | |||
| Browser | Google Chrome | |||
| Media Player | Local video playback: VP9,Mpeg1/2/4, H.264,H.265,VC-1,WMV,AVI,MKV,MOV | |||
| Online Video | Access to internet, online video playing | |||
| Music | Local music player: MP3,WAV,WMA | |||
| Online music | Access to internet, online music playing | |||
| Picture viewer | Support multi formats: BMP,JPG,TIF,PNG,GIF | |||
| Software update | OTA or local update by USB pen drive or Micro SD Card | |||
| External storage | Micro SD card, USB storage support | |||
| Wi-Fi | 2.4G | |||
| Mirroring | DLNA, Miracast | |||
| Interface definition and parameter | ||||
| USB | 2x USB2.0 port | |||
| SD card | 1xMicro SD slot max128GB | |||
| Rj45 | Wire internet connecting, RJ45 10/100 Megabits | |||
| HDMI | HDMI 2.0 output | |||
| CVBS | CVBS Output | |||

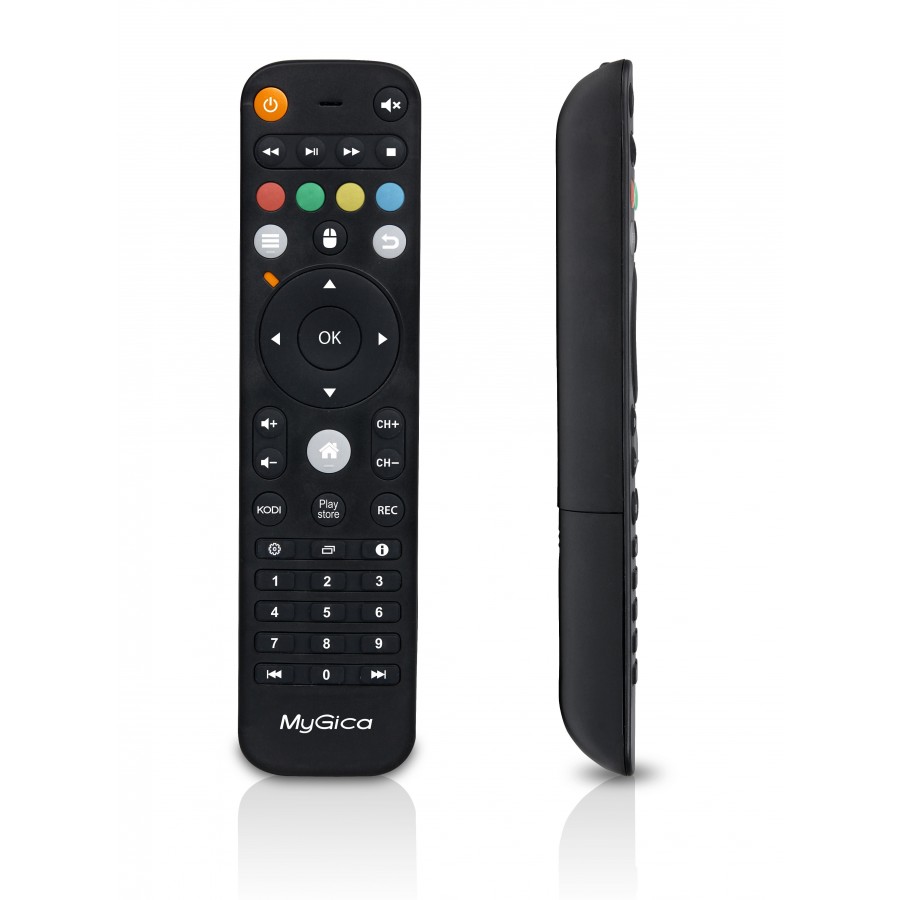

| Remote control | Mygica IR remote (KR21) | |||
| Voltage | 5V/2A DC | |||
| Dimension | ||||
| Resolution | 4K.2K,1080P,1080i, 720P, 720i, 576P, 576i, 486P, 486i | |||
| Product Size | 85mm(L)* 85mm(W)*20mm(T) | |||
| Net weight | 420g | |||
| Power Consumption | ≥6W | |||
| Remote Distance | 8 Meters Visual | |||
| CPU (Processor) | Amlogic S905X Quad Core Cortex-A53 a 2.0GHz |
| GPU (Graphics) | Penta Core 5x Mali 450MP at 2GHz |
| RAM memory | 1GB DDR3 |
| Internal memory | 8GB expandable by SD |
| Operating system | Android 6.0 Marshmallow |
| Wi-Fi | b/g/n/ac |
| WIFI antenna | 1x External |
| Ethernet | Gigabit 1000 Mbps |
| Bluetooth | Internal 4.0 |
| H.265 Hardware decoding | Yes |
